TOPENS KD702 Dual Swing Gate Opener Light Duty Automatic Gate Motor


TOPENS KD702 Dual Swing Gate Opener Light Duty Automatic Gate Motor for Double Swing Gates Up to 3.6m per Arm, Electric Driveway Gate Operator AC Powered with Remote Control, Beacon and Photo Sensor. Founded in 1998, TOPENS is one of the UK's well-known and trusted consumer brands in gate automation industry. For years we are keeping on updating technology and developing new generation of automatic gate opener systems, in order to bring safe, intelligent and reliable products with long-lasting performance. Thousands of these units are in use over the nation today.

TOPENS is always committed to providing the high-quality products as well as helpful service. When you have our products, you also get the favorable 12-month war-ranty, excellent tech guidance, and outstanding system consultant service. We have a knowledgeable, talented team of technicians to assist you with all of your questions and troubleshooting. In the philosophy of "customer first", we will devote ourselves to making the automatic gate operators smarter, safer and easier to use, offering satisfied shopping experience to our dear customers.

TOPENS KD702 Swing Gate Opener - Highlights. Durable & Reliable Dual Swing Gate Opener. TOPENS KD702 Automatic Gate Opener features two 24VDC 30W motors with higher efficiency, lower power consumption, and greater safety. It is designed as the cost-effective kit for Light Duty dual swing gates up to max 140kg in weight OR max 3.6m in length per gate leaf. This ultra-quiet electric gate motor will bring your family an easier and more comfortable life. AC Electricity Powered, Solar Capable. Built-in transformer, KD702 gate opener can be powered by 220-240VAC electricity directly. You can use AC power alone, or together with 24V 20W solar panel & solar charge controller NOT incl.

To charge the 24V 12Ah Automotive / Marine type battery NOT incl. The battery is used as back-up power source only. Multiple Applications, Easy DIY Installation.

Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch.

The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours. Choose TOPENS gate opener, visit our website to download the user manual, watch the installation video and enjoy our consultant service directly. If you have any questions, get in touch with us.

TOPENS experts will find you the best solution. KD702 Features & Installation Modes. The "auto-close" function ultimately secures the property after you leave. Stops in case of obstruction during gate opening, and reverses in case of obstruction during gate closing. Adjust the stall force to get your desired open / close obstruction sensitivity.

Higher stall force level, lower obstruction sensitivity. Soft start and soft stop ensure a long-lasting performance. The above modules can be adjusted on the smart control panel directly. KD702 gate opener works well for the light duty dual swing gate up to a maximum of 3.6m in length (correspondingly 50kg in weight) per gate leaf. Suitable for the swing gate up to 140kg in weight (correspondingly 1.2m in length) per gate leaf.

Kindly note that the max. Gate length capability is inversely proportional to the gate weight. Opening Angle of the Gate in Pull-to-Open Installation Mode. The gate is allowed to open inwards viewed from inside property with the pull-to-open mode.

The related bracket is included. In this mode, the maximum opening angle of the gate varies from 68° - 120° depending on the installation of the bracket. Opening Angle of the Gate in Push-to-Open Installation Mode. The gate is allowed to open outwards viewed from inside property with the push-to-open mode. In this mode, the maximum opening angle of the gate varies from 91° - 112° depending on the installation of the bracket.

KD702 Specifications & Package Contents. TOPENS Remote Control & Safety Accessories Incl. Adopting advanced TOPENS code technology, the remote control perfectly prevents unwanted entry. For your gate safety, only TOPENS authorized remotes and wireless accessories are allowed to operate the TOPENS Gate Opener.

JD24VY 24VDC Warning Light: flashing when the gate is moving, improving your gate safety. TC102 Photo Eye Beam Sensor: prevents the gate from closing when obstructed, adds security. Product Model: KD702 Gate Opener.

Gate Opening / Closing Time: approx. Opening Angle: 68° - 120° depends on the installation mode. Dimension of the Arm (Actuator): 855 x 84 x 104 mm. Dimension of the Control Box: 276 x 214 x 87 mm.

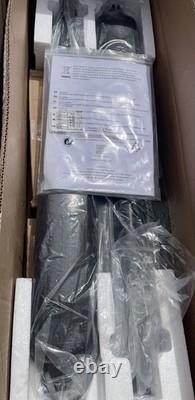

Package Dimension: 90 x 28 x 20 cm. What's in the Box. 2 x Gate Opener Actuator (Arm), with a 1.5m 5-Conductor Cable per Arm. 1 x Waterproof Control Box. 1 x Photo Eye Beam Sensor.

2 x M12 Remote Control Transmitter, 2 x Emergency Release Key. 1 x 7.5m Extension 5-Conductor Cable for Actuator. 1 x 1.5m 2-Conductor Power Supply Cord. 2 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards).

2 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards). 1 x Full Set of Required Installation Hardware, 4 x Warning Sign, 1 x Detailed English Installation Manual. Manual Release Key & Multiple Power Modes. Equipped with manual release key in case of power outage or when you lose your remote.

Power Mode 1 (Default Mode) - Use AC Electricity Only. Use the 220-240VAC electricity to power the system only.

Recommended where AC electricity is accessible and stable. The power supply cord is included.

The specification of the power supply cord is 2 × 0.75 mm2. Connect the live wire and neutral wire to the No. Release the clutch and open the gate manually in case of power outage.

NOTE: The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control. Power Mode 2 - By AC Electricity and Back-up Batteries.

Batteries as back-up power source, use the AC electricity to charge the batteries. Recommended where AC electricity is accessible, but not stable.

Requires additional 24V 12Ah Automotive / Marine type battery NOT incl. 2 pcs 12V batteries connected in series for 24V (Battery is NOT included). Power Mode 3 - By AC Electricity, Solar Panels and Back-up Batteries. By 220-240VAC electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller together to charge the batteries. Requires additional 24V 12Ah Automotive / Marine type battery.

2 pcs 12V batteries connected in series for 24V. A wide range of optional accessories compatible, they are available online at TOPENS Store.

TC196 Tuya WiFi Remote Control. Control the gate opener with your cellphone anytime and anywhere. Up to 8 remotes can be programmed to the gate opener directly.

Allows up to 250 remotes to be programed with the gate opener. TEW3 Vehicle Sensor Exit Wand. Opens the gate automatically when it senses an approaching car.

Open the gate with a user defined password, use this keypad wirelessly, or wire it to the gate opener according to your needs. Open the gate with a user defined password. Open the gate with a user defined password / ID card. TC148 Waterproof Wall Push Button. Open and close the gate simply by pressing the wired button, fully waterproof.

Open and close the gate simply by pressing the wired button, not waterproof. Open and close the gate simply by pressing the wireless button. Prevents the gate from closing when obstructed, adds security with simple wire connection. Locks and unlocks the gate automatically. TC102 Photo Eye Beam Sensor.
